UHD

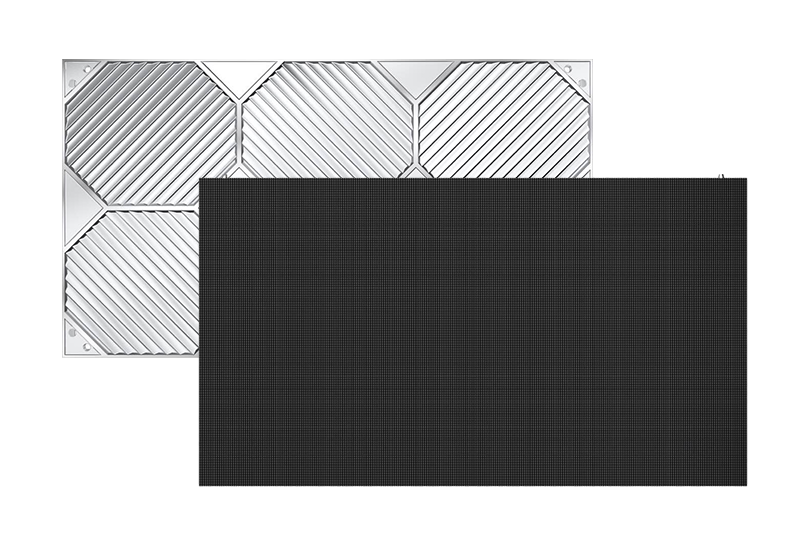

UHD is ultra hd resolution16:9 LED display screen, a newly designed series , panel size 16:9, 600x337.5mm, easy to to make 4:3, also easy for 16:9 led screen sizes ,reach very high contrast rate.

UHD, Ultra HD Resolution

P0.93/P1.25/P1.56/P1.875 Ultra HD Resolution LED Display Screen

UHD

UHD

Ultra HD Resolution LED Display Screen with Super Density Pixel, Vivid Viewing Experience, Super-high Stability, User-level Experience, Super Flatness.
  • 详情
  • Product LINE1
  • Product LINE2
  • Product LINE3
  • Product LINE4
  • Product LINE5
  • Product LINE6
  • Product LINE7
  • Product LINE8
  • Product LINE9
  • Product LINE10
  • Product LINE11
    • Commodity name: UHD
    • 副标题: UHD, Ultra HD Resolution
    • 主描述: P0.93/P1.25/P1.56/P1.875 Ultra HD Resolution LED Display Screen
    • 介绍: UHD is ultra hd resolution16:9 LED display screen, a newly designed series , panel size 16:9, 600x337.5mm, easy to to make 4:3, also easy for 16:9 led screen sizes ,reach very high contrast rate.

    Ultra HD Resolution LED Display Screen with Super Density Pixel, Vivid Viewing Experience, Super-high Stability, User-level Experience, Super Flatness.

    Application scenario

    Airport

    Home Cinema

    TV Studio

    Control Center

  • Native Screen Size 16:9


    The 16:9 cabinet design enable to perfectly restore 2K, 4K, and 8K images point-to-point without stretching or scaling.

  • Optional Visual Lifestyles

    Reaches 5000：1 ultra high contrast and supports higher brightness options and higher screen color saturation

  • Ultra HD Resolution

    Higher density
    Easier to make a 2K 4K 8K Resolution

  • Generation Of High Stability

    Use the latest RGB or COB technology, it is more stable and there will be no dead lights during use, and avaid the LED-hack during installation

  • Deep Energy Saving Technology

    Power consumption much less than traditional led display, reducing carbon emissions.

  • Main Technical Specifications 　 　
    Para item Details Description
    Pixel Pitch 0.93mm 1.25mm 1.56mm 1.875mm
    LED Config 1R1G1B 1R1G1B 1R1G1B 1R1G1B
    Driver IC Constent current Constent current Constent current Constent current
    Blind spot < 0.01% < 0.01% < 0.01% < 0.01%
    Module Resolution 320*180 Pixels 240*135 Pixels 192*108 Pixels 160*90 Pixels
    Module Size 300*168.75  mm 300*168.75  mm 300*168.75  mm 300*168.75  mm
    Cabinet  Size 600*337.5mm 600*337.5mm 600*337.5mm 600*337.5mm
    Display Area 0.2025 SQM 0.2025 SQM 0.2025 SQM 0.2025 SQM
    Cabinet Resolution 640*360 Pixels 480*270 Pixels 384*216 Pixels 320*180 Pixels
    Cabinet Power Cons. 110W / 50W 110W / 50W 110W / 50W 110W / 50W
    Module QTY 2*2  pcs 2*2  pcs 2*2  pcs 2*2  pcs
    Material Aluminum Aluminum Aluminum Aluminum
    Weight / Cabinet 5.7 KG 5.7 KG 5.7 KG 5.7 KG
    Surface Flatness < 0.4mm < 0.4mm < 0.4mm < 0.4mm
    Surface color Black / Grey / White Black / Grey / White Black / Grey / White Black / Grey / White
    Resolution 1137777 Pixels/m2 640000 Pixels/m2 409600 Pixels/m2 284444 Pixels/m2
    Brightness 600 nits 600 nits 600 nits 800 nits
    Grey scale 65536 level  65536 level  65536 level  65536 level
    Refresh rate 3840HZ 3840HZ 3840HZ 3840HZ
    IP rate IP31 IP31 IP31 IP31
    Contrast rate 3000 : 1 3000 : 1 3000 : 1 3000 : 1
    Color temperature 9300-13000K 9300-13000K 9300-13000K 9300-13000K
    Viewing angle H: 140 degree, V: 140 degree  H: 140 degree, V: 140 degree  H: 140 degree, V: 140 degree  H: 140 degree, V: 140 degree
    life span 100000 hours 100000 hours 100000 hours 100000 hours
    Installation Fixed/Hanging/Stacking Fixed/Hanging/Stacking Fixed/Hanging/Stacking Fixed/Hanging/Stacking
    Control System NOVA NOVA NOVA NOVA
    Control platform XP/WIN7/WIN8/WIN10 XP/WIN7/WIN8/WIN10 XP/WIN7/WIN8/WIN10 XP/WIN7/WIN8/WIN10
    Least viewing distance 0.9-2  mts 0.9-2  mts 0.9-2  mts 0.9-2  mts
    Power input AC 220-240V 50/60HZ AC 220-240V 50/60HZ AC 220-240V 50/60HZ AC 220-240V 50/60HZ
